Weather Satellite APT Receiver

There are several polar orbiting weather satellites continuously transmitting images. They transmit a digital high resolution format (complex and expensive to receive), and a few also transmit a simpler analogue low resolution format called "APT" (Automatic Picture Transmission) - which is what this receiver picks up. Free software is available for both tracking and decoding the satellites.

Visible and infrared images are transmitted side-by-side in greyscale. They can be combined into a false colour image, which is much more pleasant to look at, and can reveal more detail.

Pics are updated now and then.

Major updates were performed during early 2010, including:

• Building the prototype boards onto PCBs (finally!)
• Adding a 2nd receiver and Yagi antenna for diversity reception
• Adding rotator control via software, to automatically track the satellite

• The QFH antenna has been replaced by a turnstile antenna, to improve S/N ratio of overhead passes.
• The turnstile antenna performs much better at high angles, and has a reduced response at low angles, reducing local interference.

From the old...  To the new prototype... To the new PC boards...

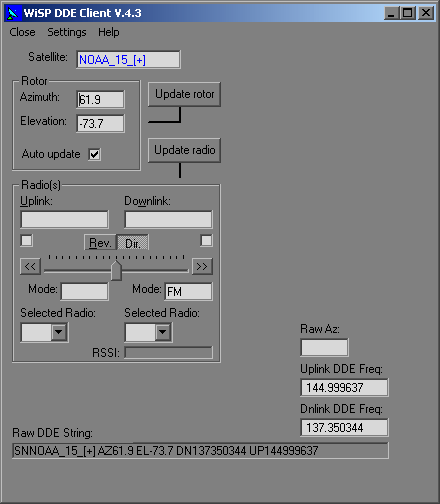

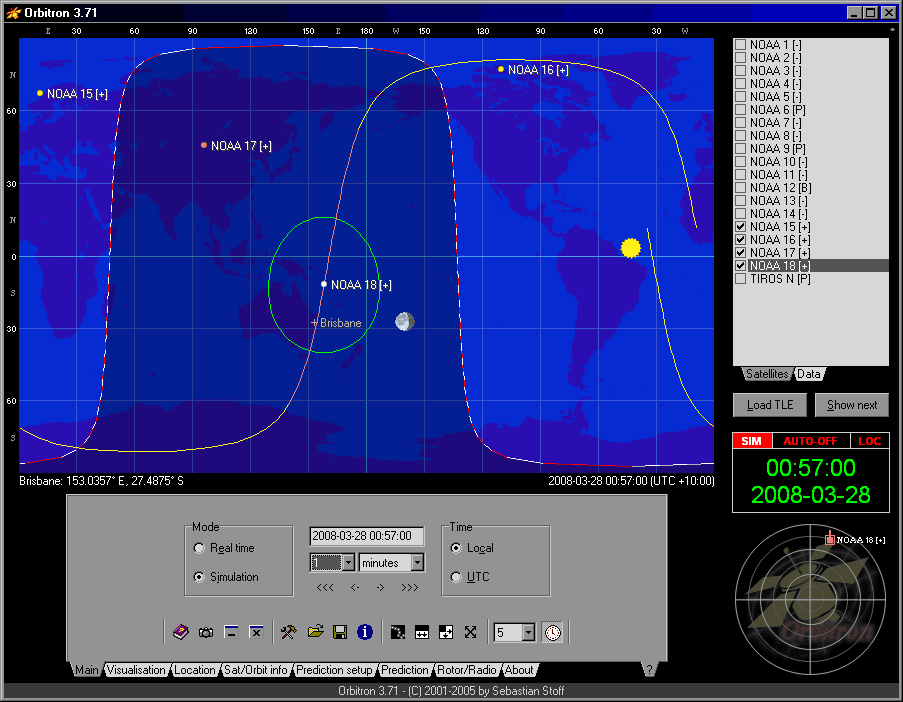

...via WiSP DDE

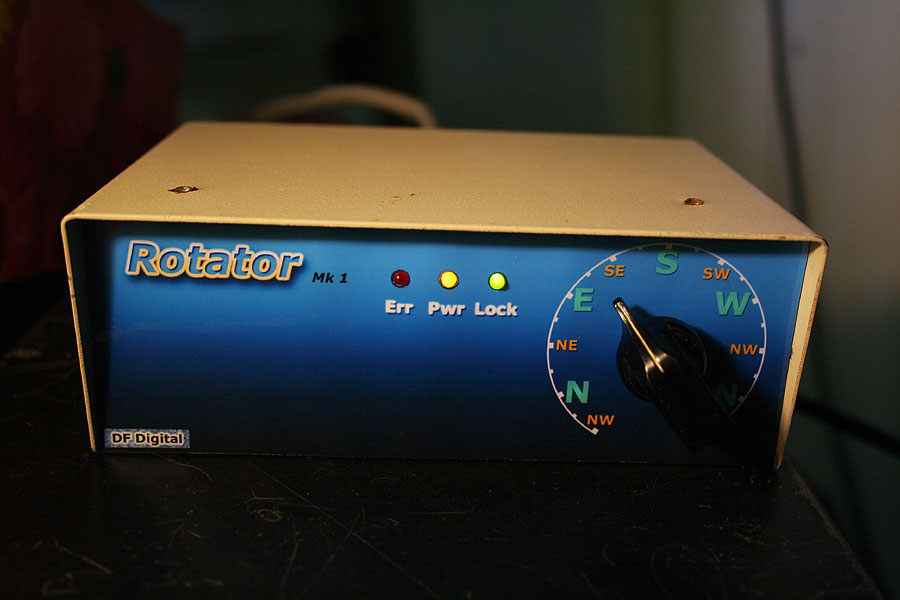

The rotator was updated to include serial port control. The firmware automatically avoids the zero degree stop by making decisions based on the satellite azimuth and elevation, and steering the rotator up to 45 degrees beyond normal either before or after a pass, depending on direction. After each satellite pass the unit reverts to analog control.

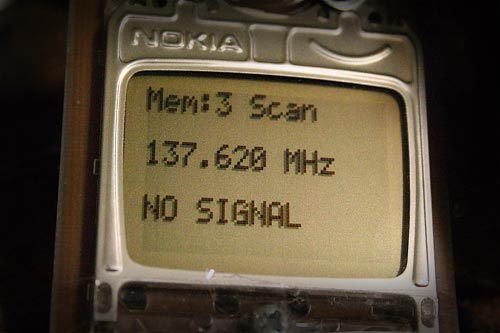

The receiver uses a recycled LCD display:

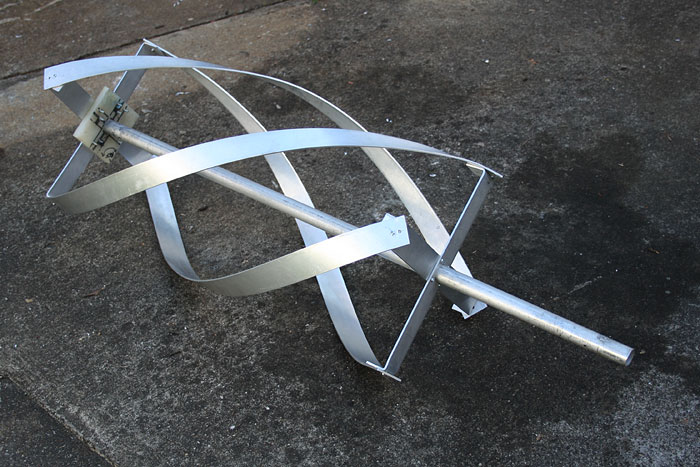

A new QFH antenna was constructed some time ago (now out of service):

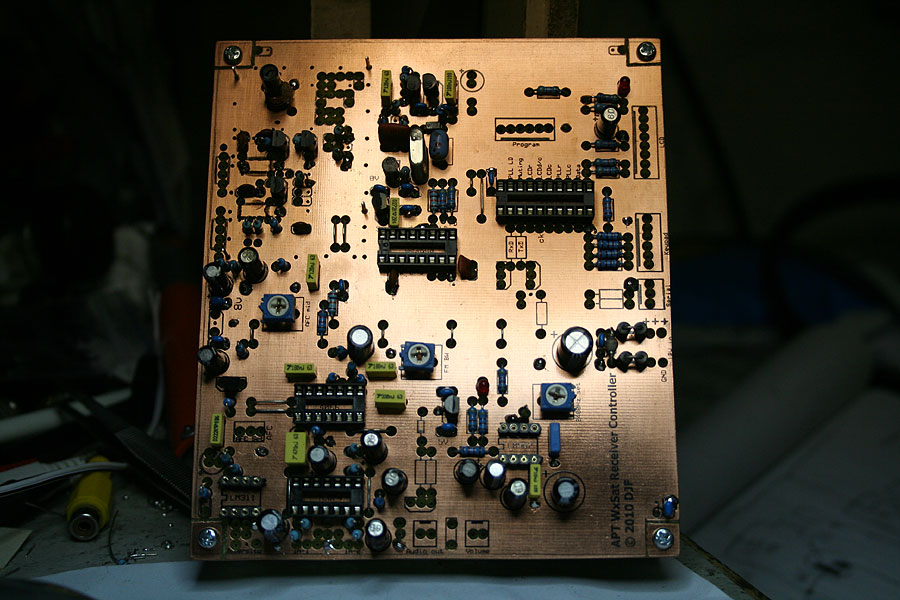

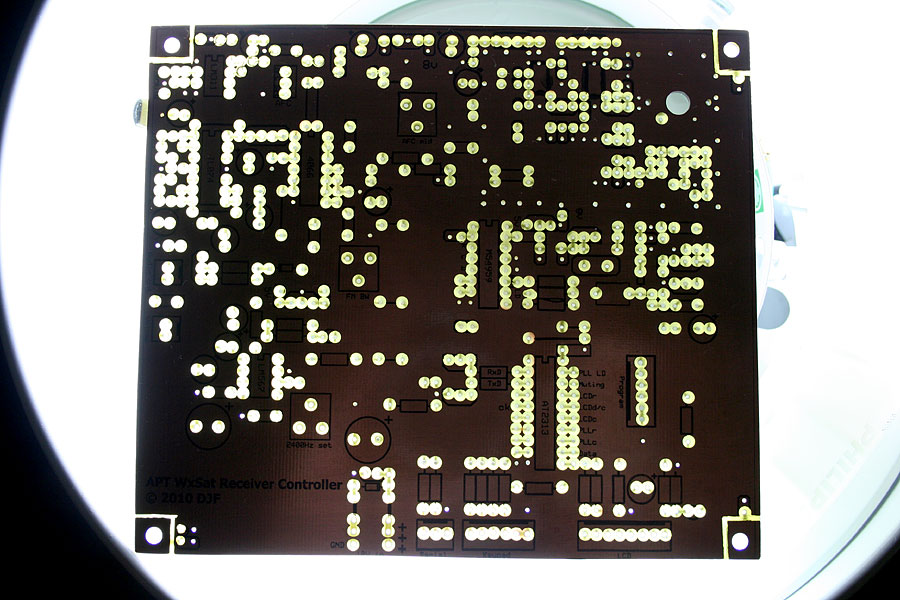

New PCB for the WxSat receiver controller - All those countersunk holes were drilled by hand! (on a drill press)

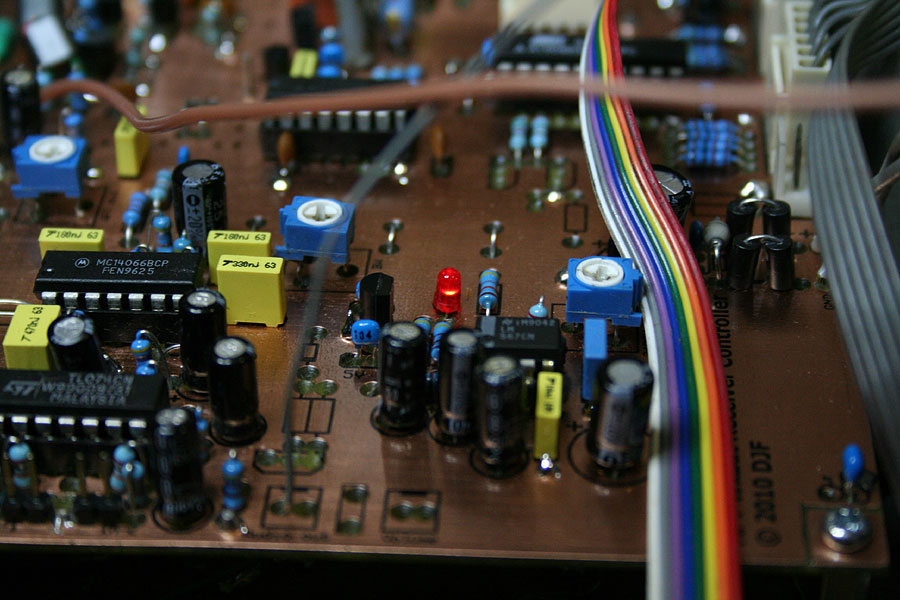

Construction commenced..

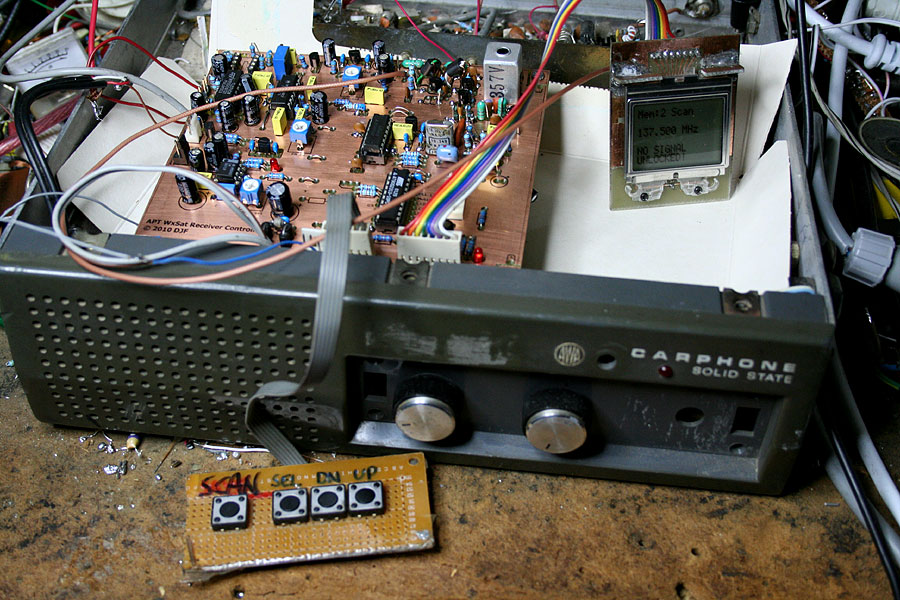

Unit operational - in testing.

Still no front panel!

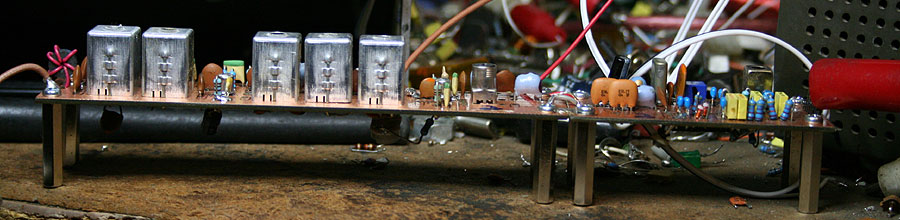

There are two receiver strips like this one - Diversity selection switches to the one with the best signal-to-noise ratio.

The diversity system uses two combined receivers, with two antennas -

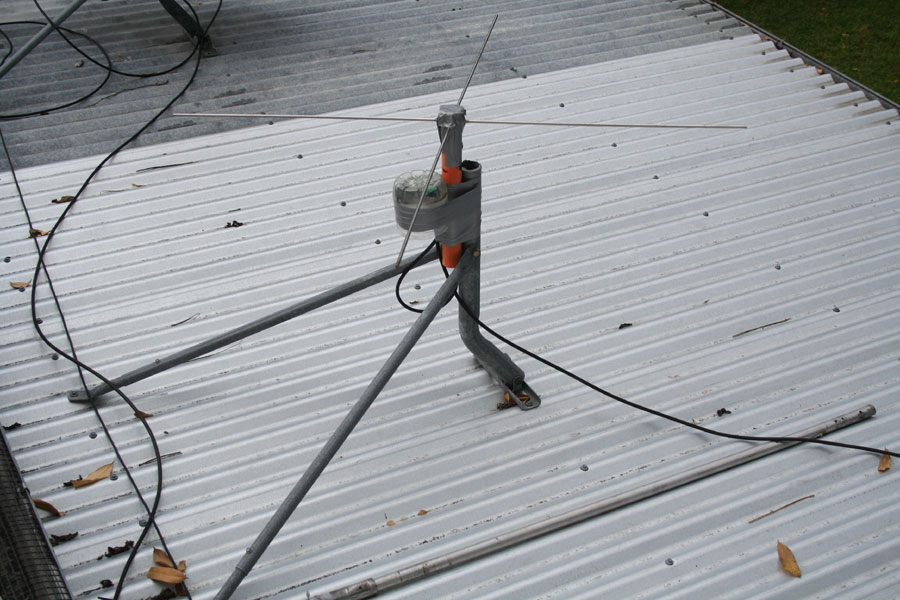

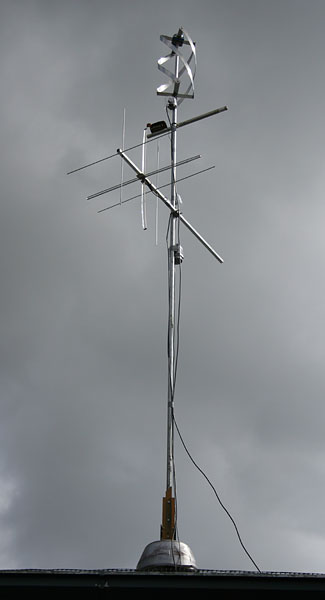

A turnstile antenna, and a 3 element dual-polarity Yagi:

The turnstile performs well at angles where the yagi doesn't. This results in less noise and interference in the received picture.

New decoding software is now being used - "WXtoImg" - and the overall results look very good:

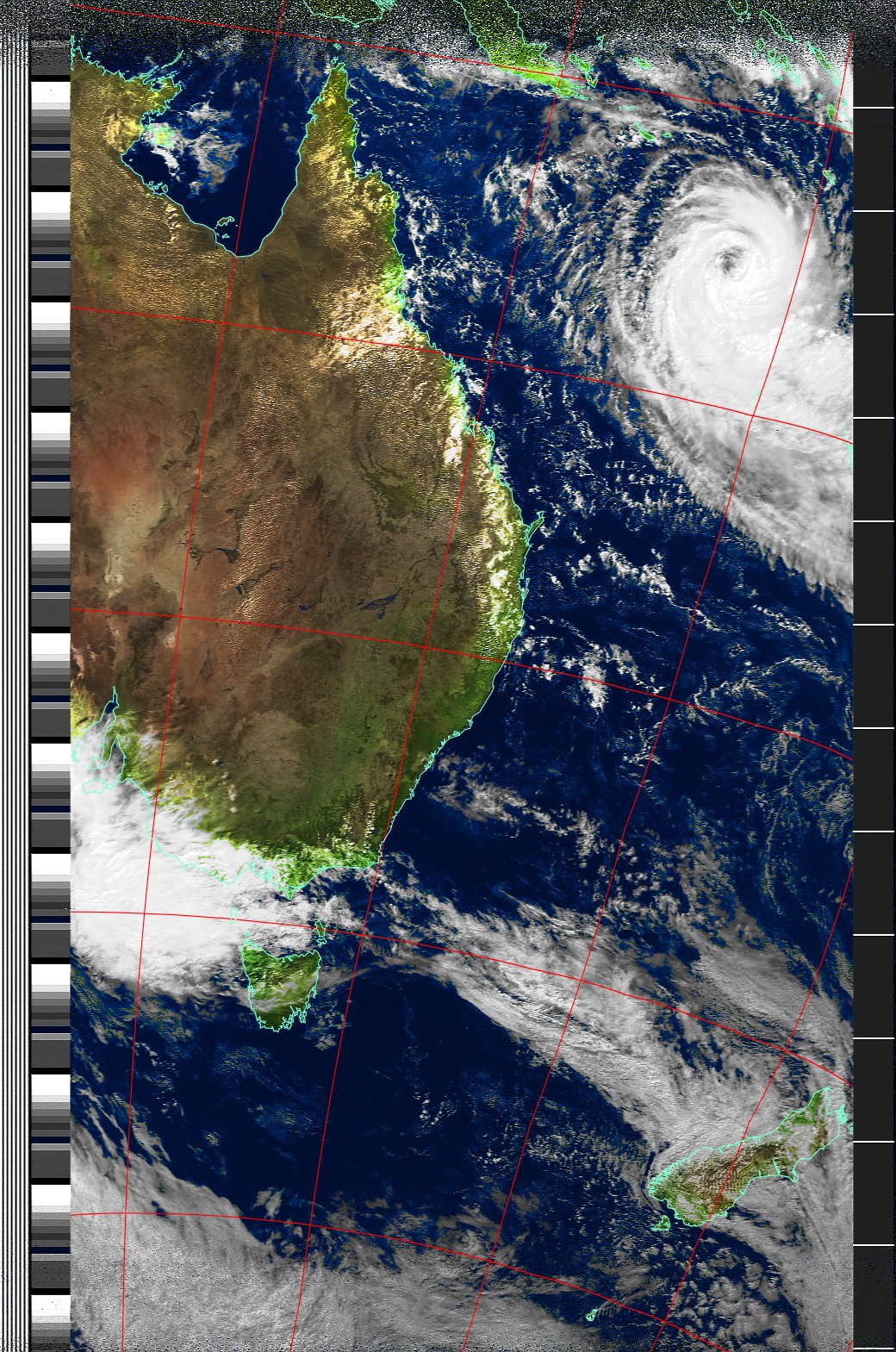

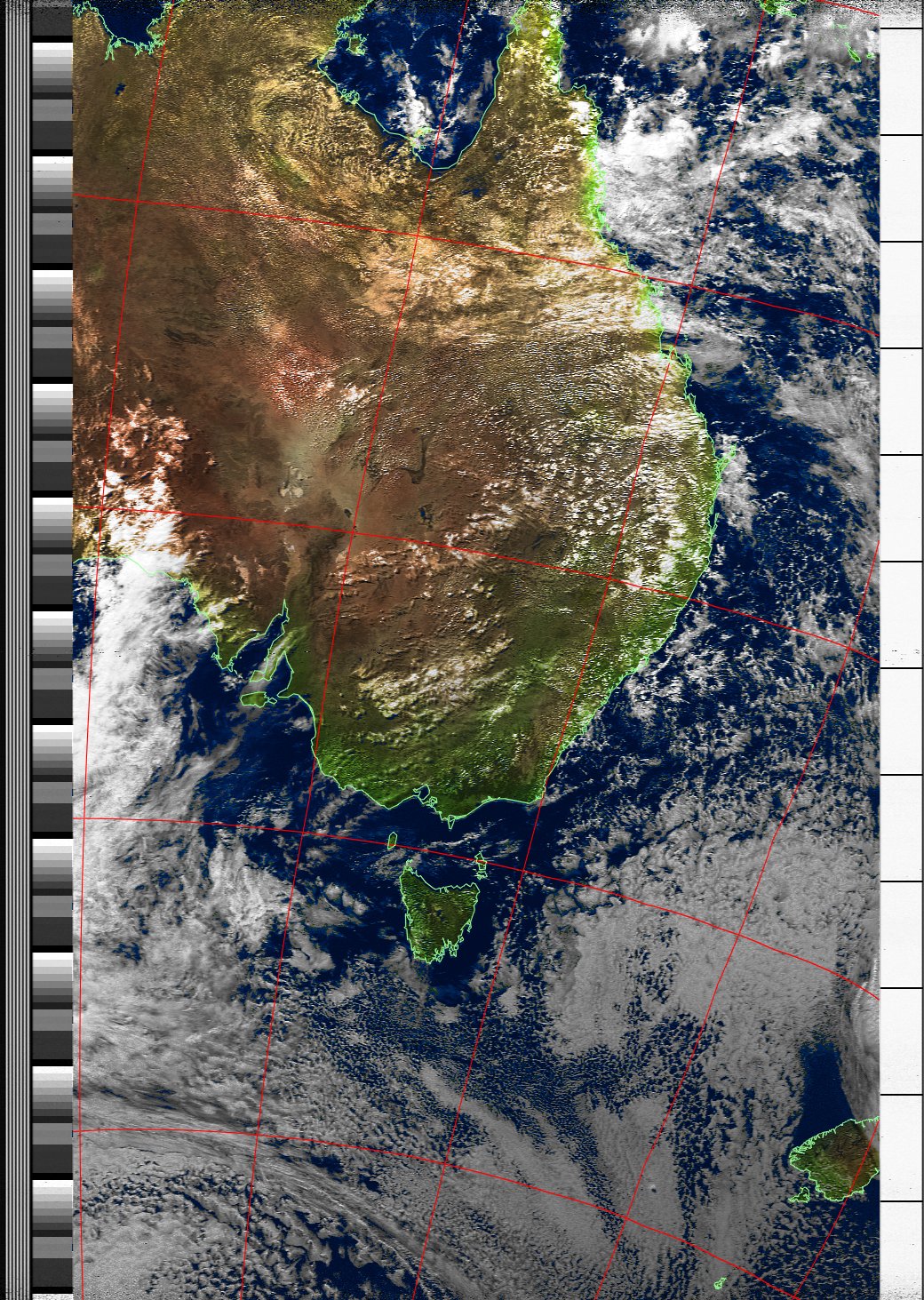

And here's an example picture from NOAA-19, showing Cyclone Ului.

Further work to do:

• Modify diversity switching to combine outputs when antennas have near equal quality signals
• Modify rotator position sensing to be fully optoelectronic
• Further research into noise blanking and FM threshold extension to recover weak signals
